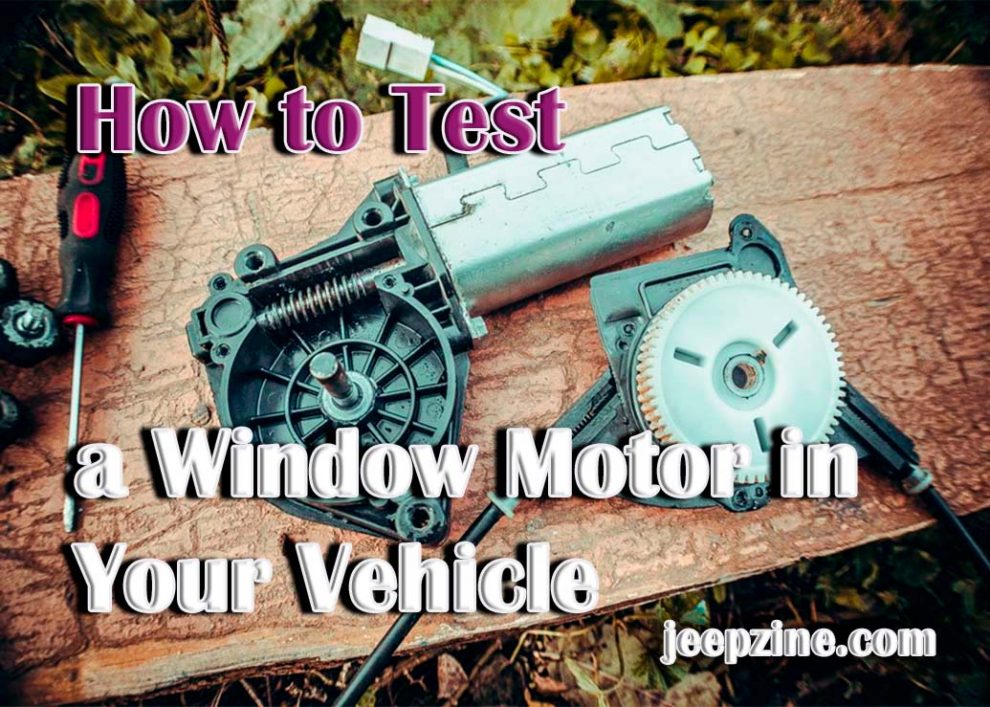

How to Test a Window Motor in Your Vehicle

A window motor is an important part of a power window system, as it is the device that operates the window. When a window motor fails or starts to malfunction, it can cause many problems. To diagnose and repair the issue properly, you must first test the motor to see if it works correctly. This article will explain how to test a window motor, so you can identify and fix any problems you may have with your power windows.

Types of Window Motors

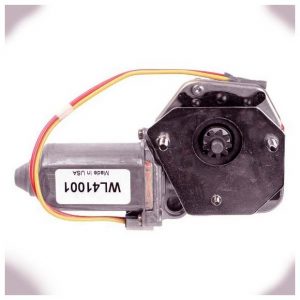

Before testing your window motor, it’s important to understand what type of motor you have in your vehicle. Most modern cars come equipped with electric or pneumatic motors for operating their windows. Electric motors are more common and use electricity from the car’s battery to operate the window mechanism. Pneumatic motors are less common but still used by some manufacturers; these devices use compressed air from an onboard compressor to move the windows up and down. Also read here about Window Tint Scratch Repair.

Checking Connections

The first step in diagnosing a faulty window motor is checking all its connections for problems. If any wires are loose or disconnected, then this could be causing issues with its operation:

• Inspecting the Wiring Harness and Connectors: Begin by inspecting the wiring harness attached to the window motor, looking for any loose connections or damaged wires that could be causing an issue. Make sure all the connectors are securely fastened to their respective terminals, otherwise, this could cause a poor connection which would interfere with the motor’s operation.

• Ensuring Power is Going to the Motor: Next, ensure power flows to the window motor from your car’s electrical system. This can be easily done with a multimeter; connect one probe of the meter to each side of a fuse in your car’s fuse box and set it to measure voltage. If no voltage is present, you may need to replace the fuse or check other connections along the circuit for further problems.

Testing Fuses and Switches

If, after checking all its connections, there does not appear to be an issue, then it might be necessary to test both its fuses and switches for any damage:

• Locating and Replacing Fuses Properly: Fuses are designed as safety devices to protect against electrical shorts or surges in a circuit; if a fuse is damaged, it could prevent power from reaching the window motor. To test your car’s fuses, first, locate the fuse box and inspect all its elements for any signs of damage. If you notice any problems, you will need to replace them with new ones to restore power to the window motor.

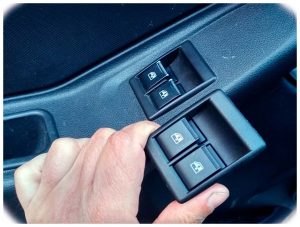

• Examining Switches for Damage or Connection Issues: Switches are also important components in a power window system, as they control when electrical current is sent to the motor for it to operate correctly. If a switch is broken or has poor connections, then this could be causing your window motor not to work correctly. Inspect all your car’s switches for signs of damage or loose connections, and if anything looks wrong, you may need to replace them with new ones to get your windows working again.

Conclusion

Testing a window motor is not a difficult task, but it’s important to properly diagnose and repair any problems you may have with your power windows. By carefully inspecting the wiring harness and connectors, ensuring power is going to the motor, and testing fuses and switches for any damage or poor connections, you can quickly identify what is causing your window motor not to function correctly. With this information, you should be able to easily repair your car’s window system to work as intended once again.
